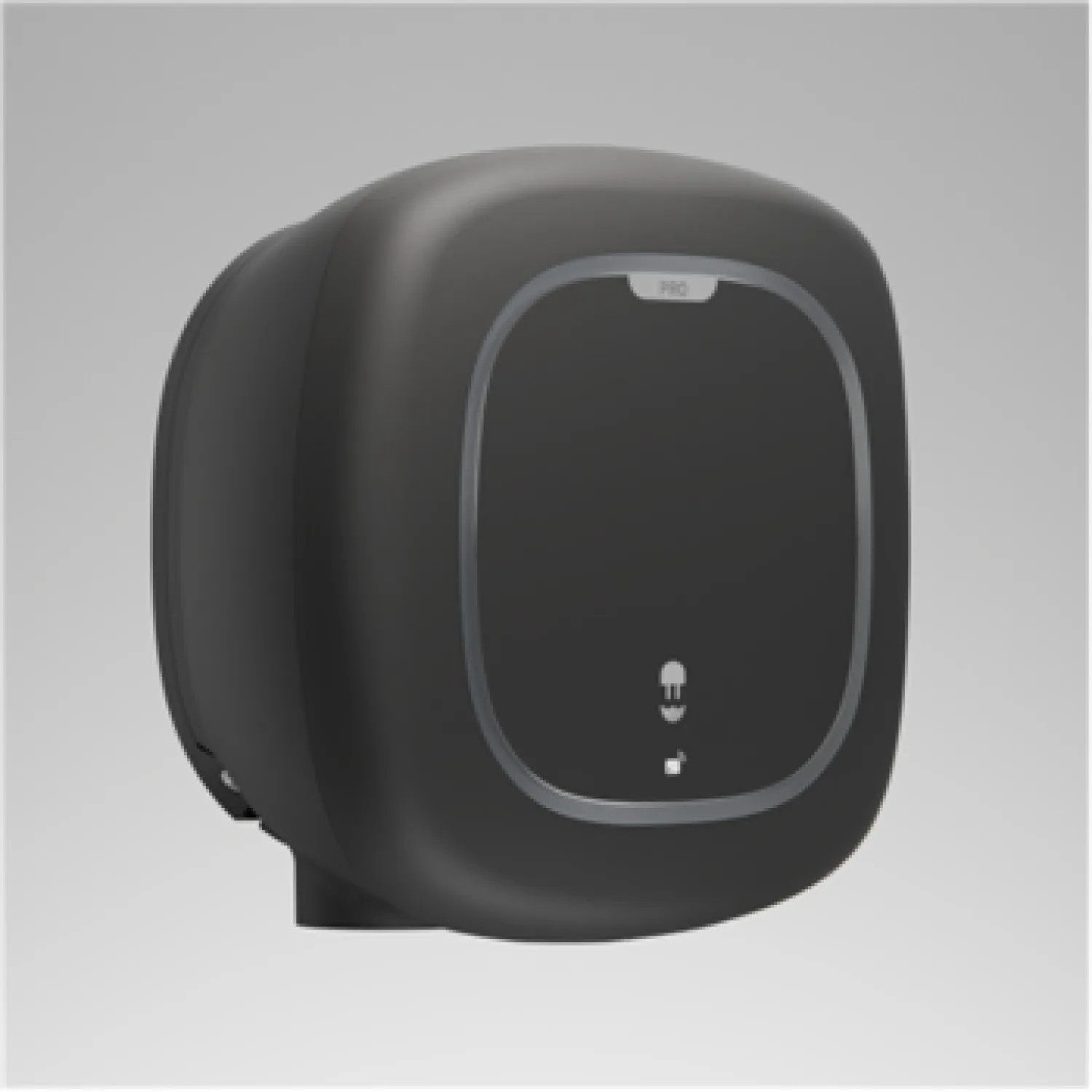

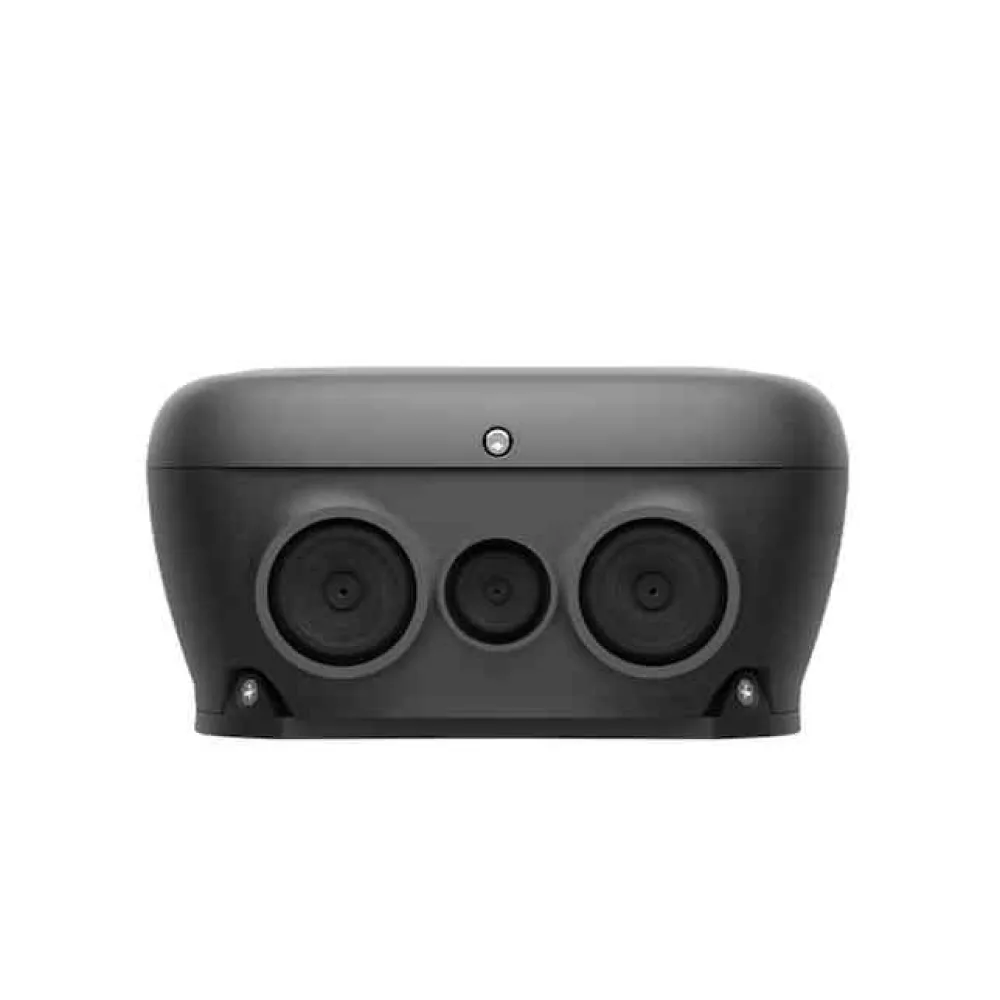

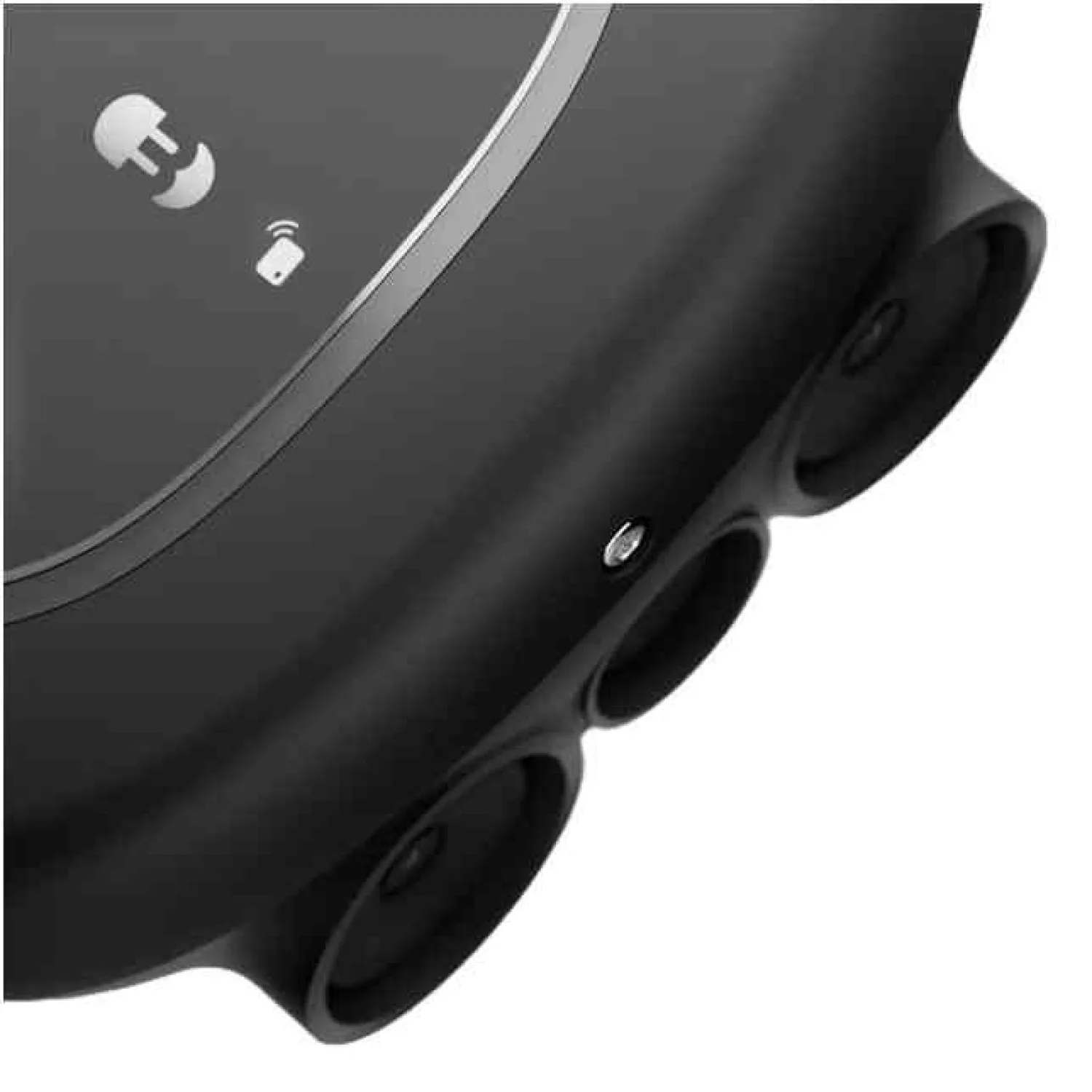

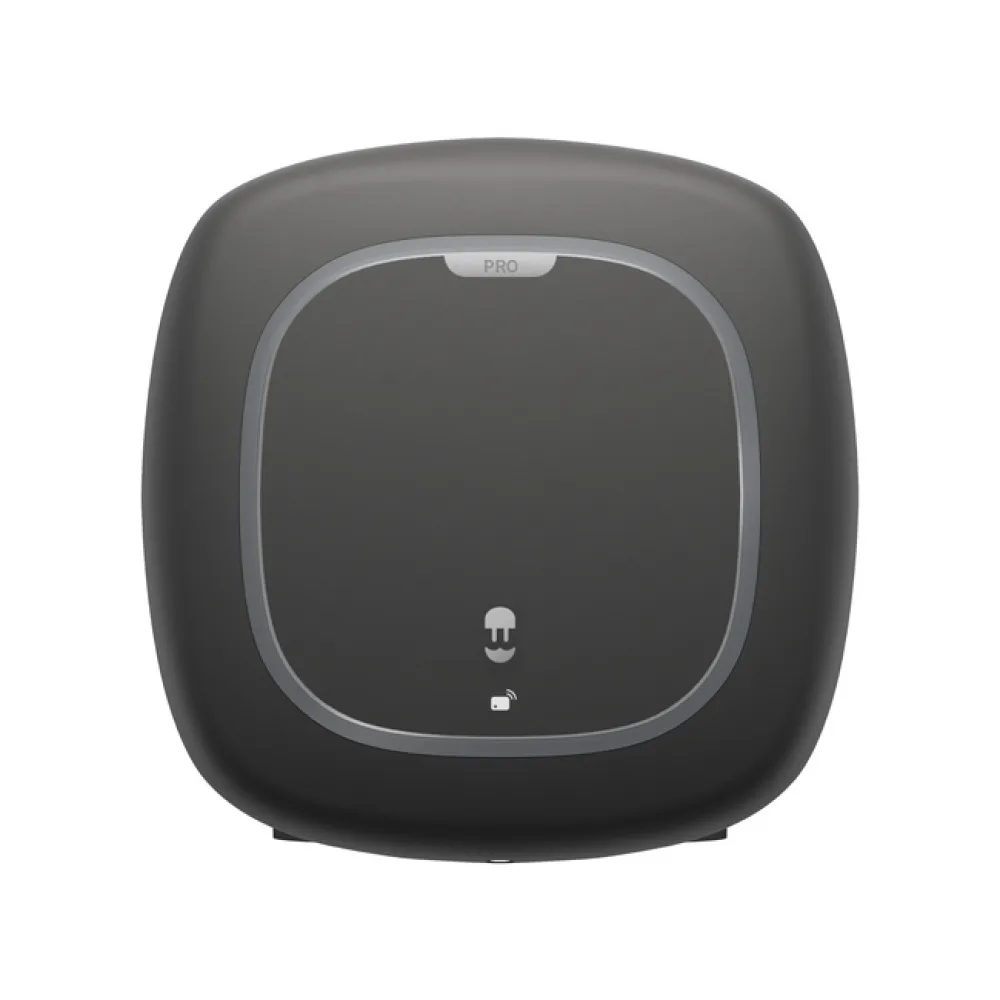

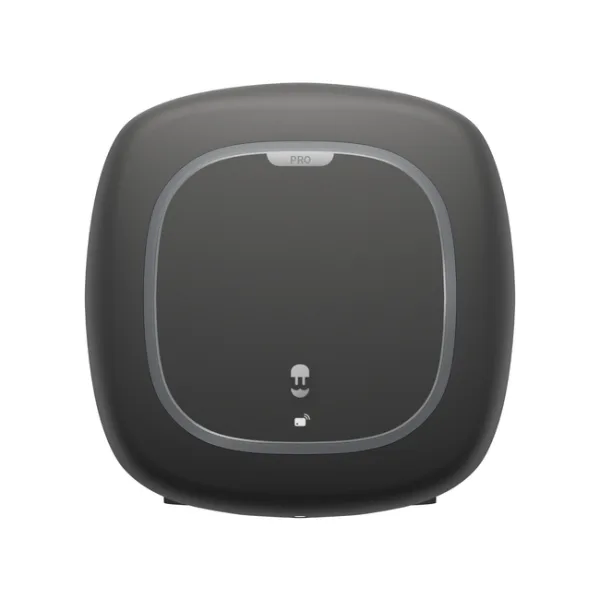

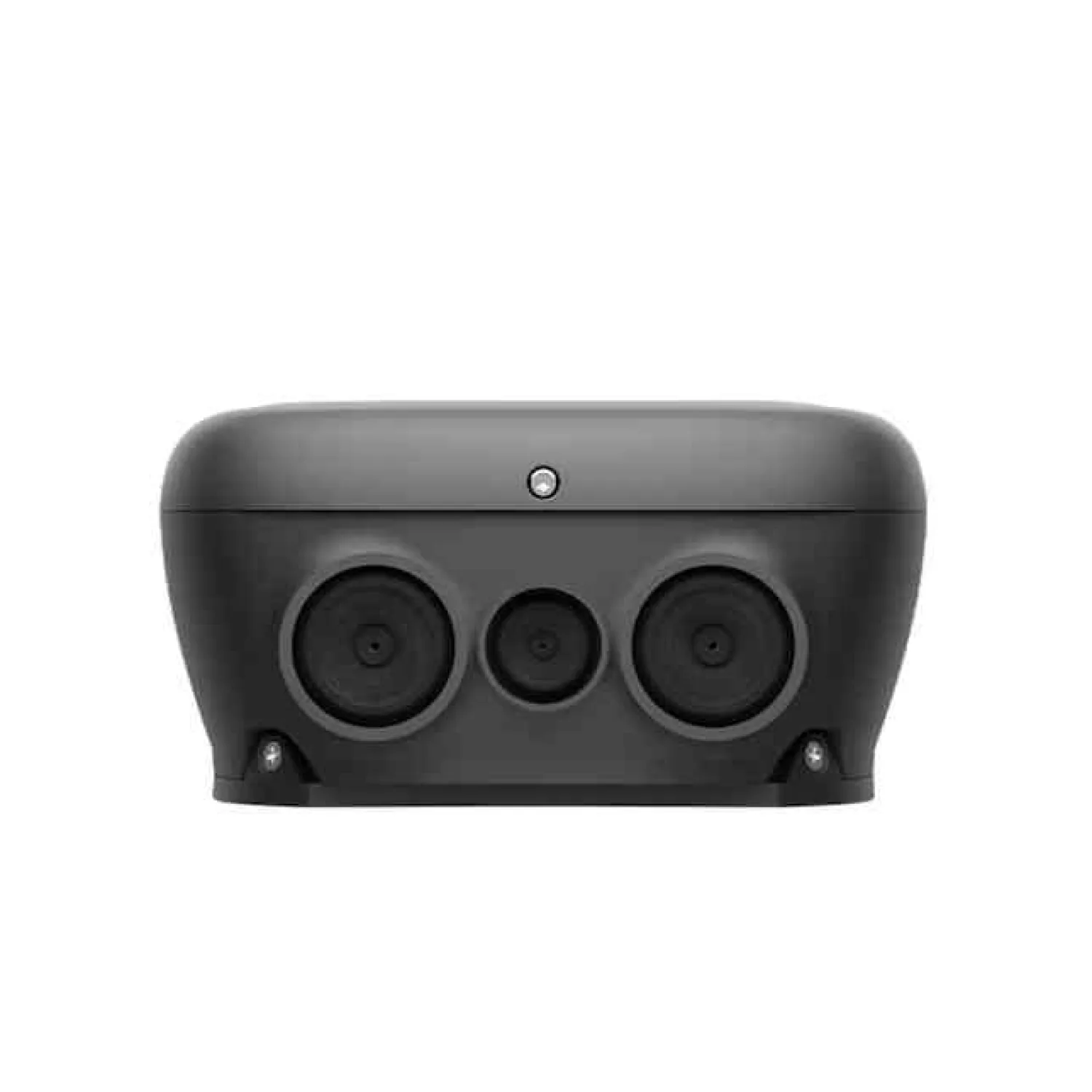

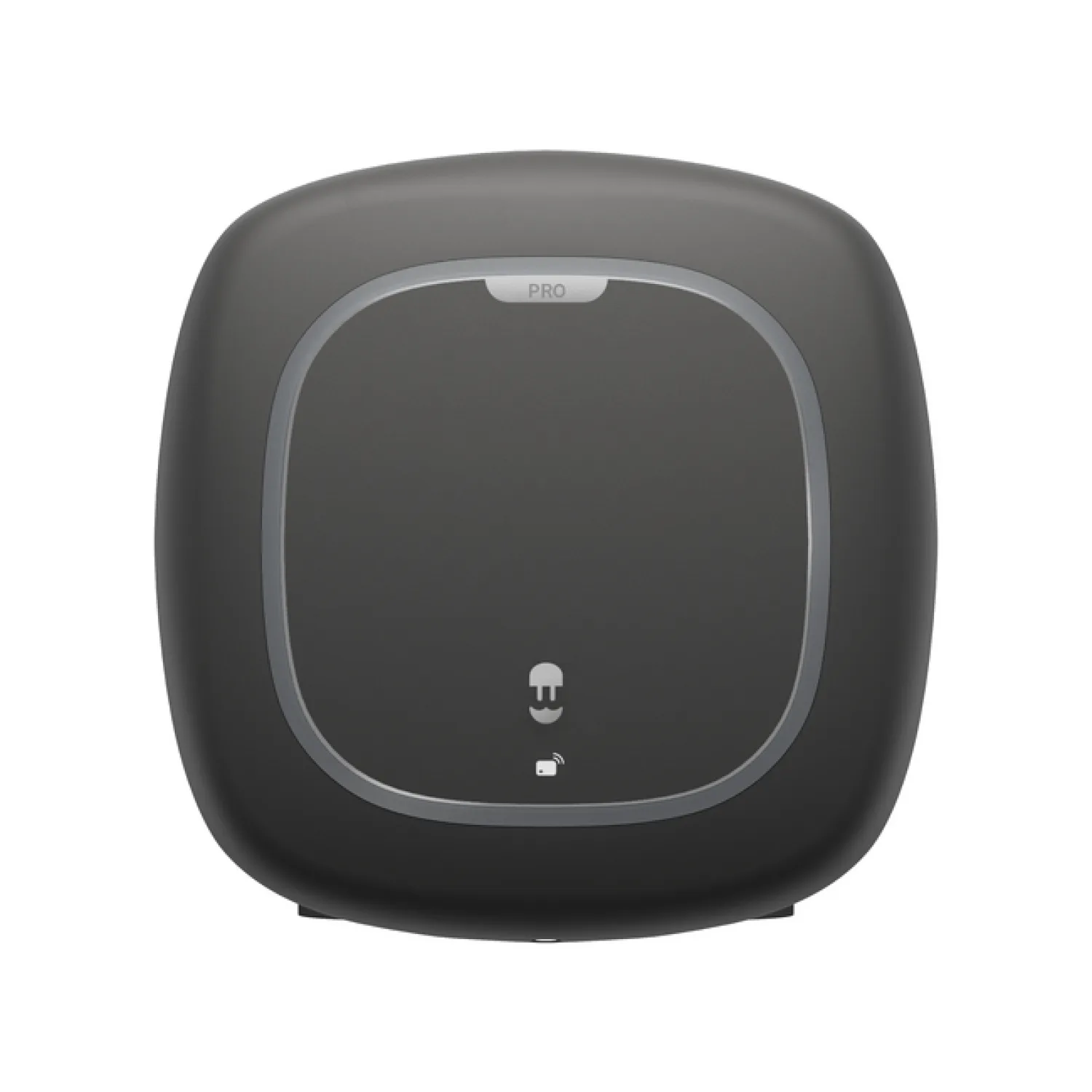

Wallbox Pulsar Pro 22 kW EV charging station, 7 m cable

Wallbox Pulsar Pro 22 kW is a smart EV charging station that combines a compact design, convenient control, and flexible access management options. The three-phase 400 V device delivers up to 22 kW of charging power, with adjustable current from 6 to 32 A. Actual charging power depends on the vehicle's onboard charger capacity and the grid connection.

Charging can be monitored and managed via the Wallbox app or web portal. Integrated Wi-Fi, 4G, and Bluetooth connectivity make everyday use effortless, while RFID card authentication allows secure access control. The intuitive Halo RGB LED indicator keeps you informed of the charging status.

The charging station features integrated static load management. By connecting an optional compatible energy meter, dynamic load balancing and solar EV charging become available. Support for the OCPP protocol, partner APIs, and SDKs allows seamless integration into broader charging management systems.

The black housing features IP55 and IK10 protection ratings. The device operates reliably in temperatures ranging from -30 to +50 °C; charging derating may occur at temperatures above +40 °C. It includes integrated 6 mA DC residual current detection, and installation requires an external Type A residual current circuit breaker according to local regulations.

Pulsar Pro is supplied with a fixed 7-meter charging cable.
