Pylontech

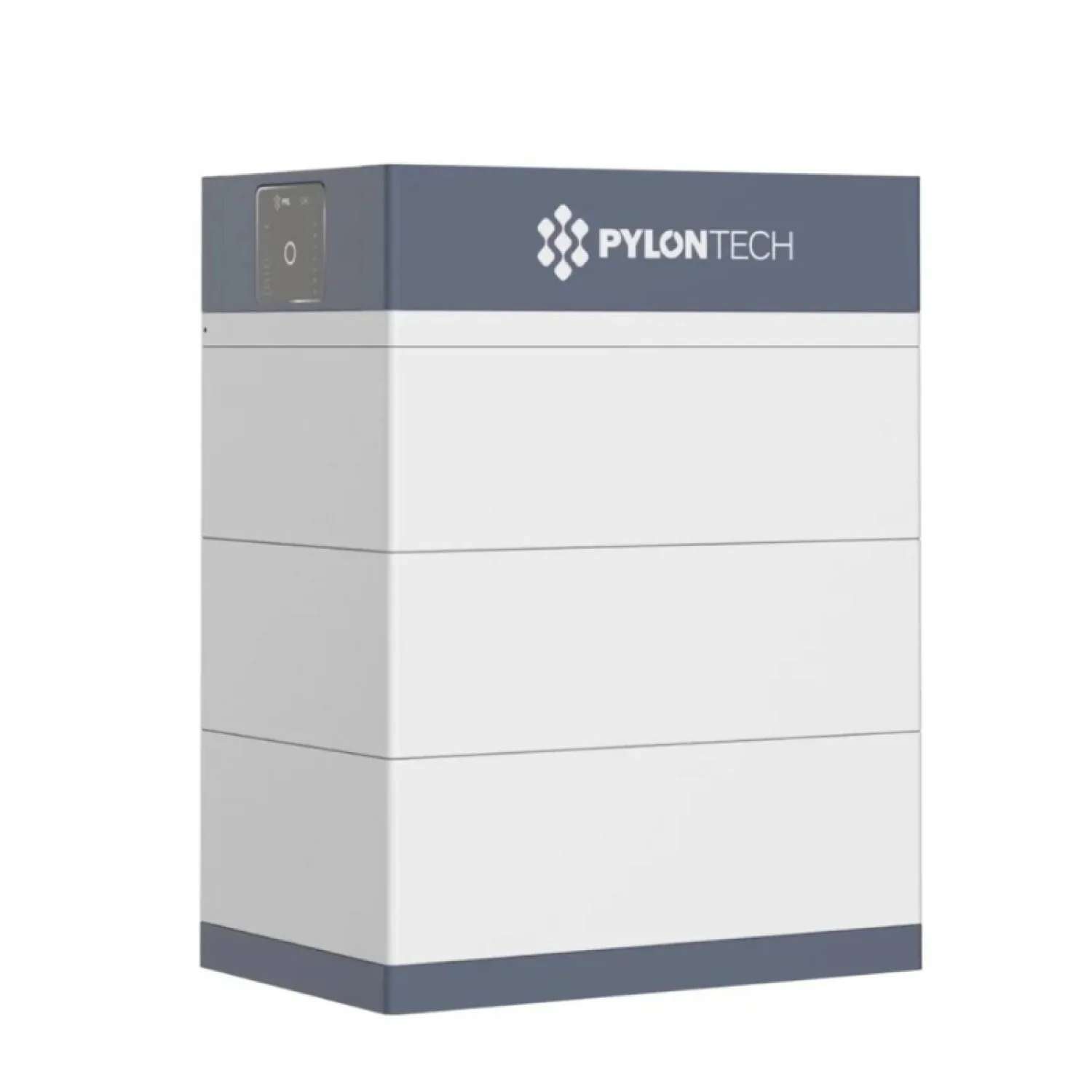

30.72 kWh Pylontech high-voltage energy storage system
Product Code: KRU100
€6,983.00
incl. VAT
€8,298.00 You save €1,315.00
This Pylontech Force-H3 high-voltage battery system uses six FH10050 LiFePO4 modules and provides 30.72 kWh nominal or 29.17 kWh usable capacity. The stack is designed for compatible hybrid energy-storage systems and has an IP55 protection rating.
In stock
Description
The 30.72 kWh Pylontech Force-H3 configuration consists of six 5.12 kWh FH10050 modules. Its nominal battery-system voltage is 614.4 V DC and the usable capacity stated by the datasheet is 29.17 kWh.
The stackable LiFePO4 system carries IP55 protection, a stated cycle life above 8,000 cycles at 25 °C and a design life of more than 15 years at 25 °C. It must be paired with an approved inverter and installed according to the manufacturer’s electrical and environmental requirements.
Specifications
- Capacity: 30,72 kWh
- Voltage type: Aukšta įtampa (HV)
- Battery type: LiFePO4
- Usable capacity: 29,17 kWh
- Nominal voltage: 614,4 V DC
- Depth of Discharge (DoD): 95%
- Number of cycles / Service life: >8 000
- Number of modules: 6
- Protection Class (IP): IP55
- Operating temperature: Įkrovimas −10 iki +55 °C; iškrovimas −20 iki +55 °C
- Connectivity: Modbus RTU, CAN
